Don't settle for lower quality lifts; choose the CL12A, a 12,000 lbs. 2-Post lift with ALI Certification. Professional Approved and Safety Guaranteed, this Trusted Brand now introduces a groundbreaking feature: 6" to 12" width adjustment during installation. Engineered for versatility, it accommodates standard cars to SUVs in a single service bay. With 3-stage front and rear arms, premium telescoping footpads, and EV Service Ready technology, the CL12A ensures top-notch performance. Elevate your garage with the Challenger lift – where quality meets innovation.
Features:
- ALI Certified 12K lbs. 2-Post Lift, Pro Approved, Safety Assured.
- Innovative: 6" to 12" width adjustment for diverse vehicle range.

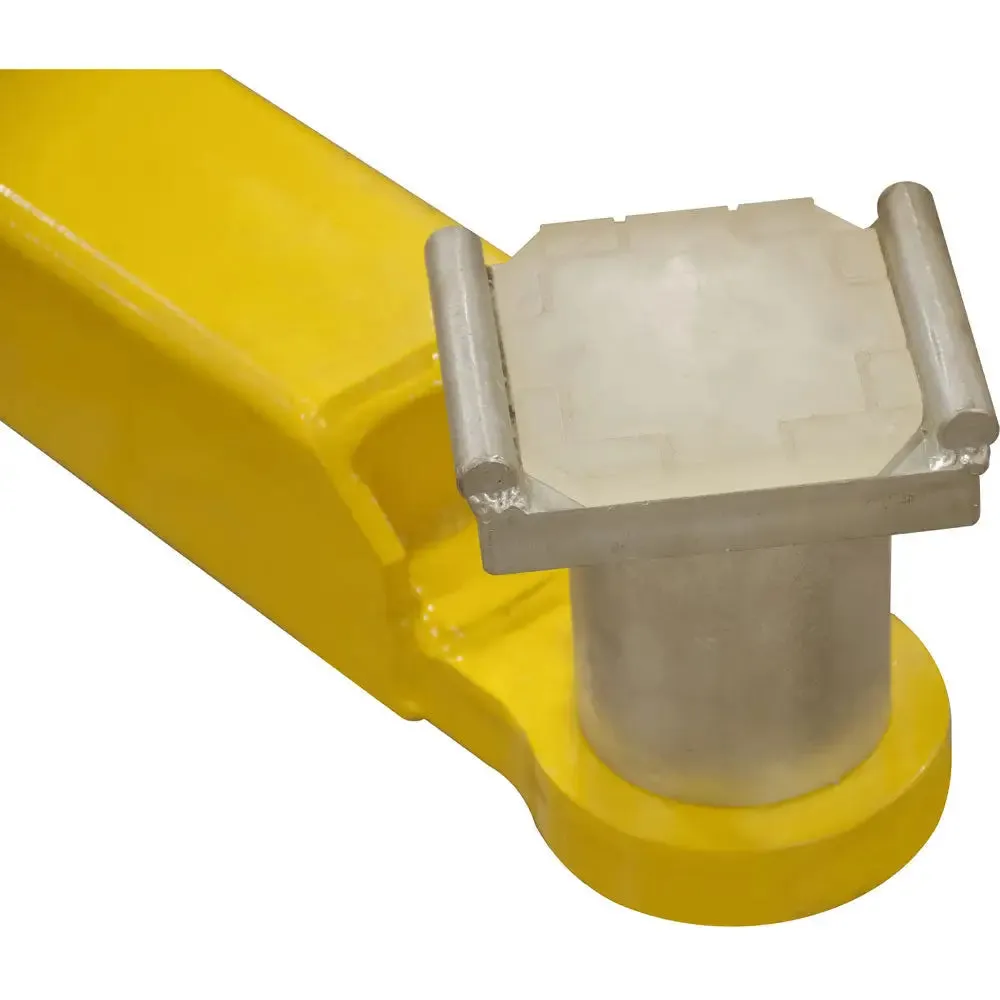

- Premium adaptability: 3-Stage arms, telescoping footpads, EV Service Ready.
- Choose Low-Ceiling model for space efficiency (11' 11in column height).
- Optional extensions: 1' & 2' for added flexibility.
- Robust build for optimal performance and long-term reliability.
- Seamless servicing for standard cars to SUVs in a single bay.
- Experience unparalleled quality from the Trusted Brand: Challenger Lifts.
Specs:
Configuration: SymmetricalLifting Capacity: 12,000 lbs.
Lifting Configuration: Symmetric
Arms: 3-stage front/3-stage rear
Rise Height: 84.75in
Adjustable Width Overall: 142in / 148in / 154in
Drive-Thru Clearance: 103.5in, 109.5in or 115.5in
Arm Reach (Min.): 27.5in
Arm Reach (Max.): 59in
Screw Pad Height *: 4.75in - 6.625in
Inside Columns: 114.5in / 120.5in / 126.5in
Motor / Voltage: 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise (approximate): 63s

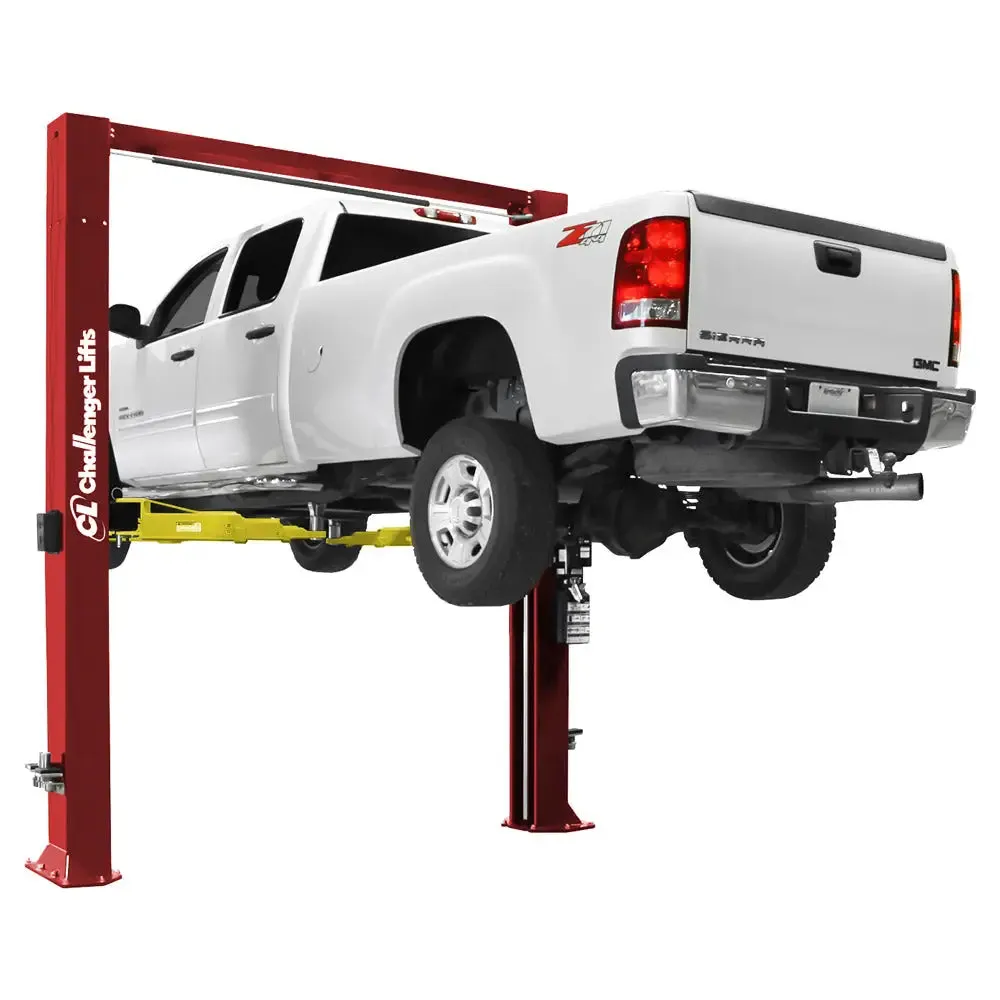

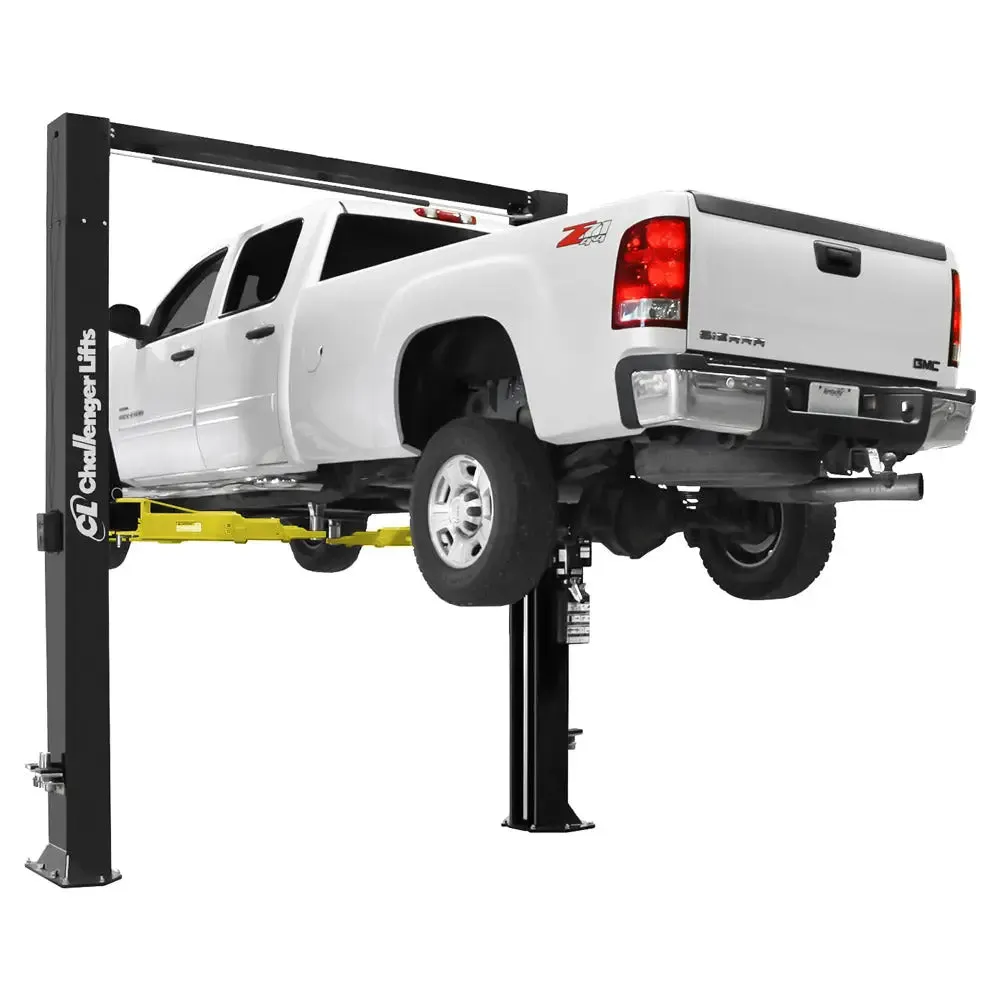

Colors Available: Red, Blue, Black
ALI® Certified: Yes
CL12A
Overall Height: 13ft 2in or 13ft 8in
Floor to Overhead Switch: 12ft 8in or 13ft 2in
Ceiling Height Required: 14ft 3in Minimum
CL12A-1
Overall Height: 14ft 2in or 14ft 8in
Floor to Overhead Switch: 13ft 8in or 14ft 2in
Ceiling Height Required: 15ft 3in Minimum
CL12A-2
Overall Height: 15ft 2in or 15ft 8in
Floor to Overhead Switch: 14ft 8in or 15ft 2in
Ceiling Height Required: 16ft 3in Minimum
Ref No.
CL12 (Older Model)
Similar Products
CL12A-1 (1ft Ext Model)
CL12A-2 (2ft Ext Model)
CL12A-LC (Low-ceiling Model)
Ref Name
Challenger ALI Certified 12K Lift
ALI Certified 12K Pro Lift
12K Safety Lift with Width Adjustment
Application:
Auto RepairGarage Service
Vehicle Maintenance
Car Workshop
Automotive Shop
